Flap wheel with M14 landing thread

Шлифовальные лепестковые круги с посадкой М14

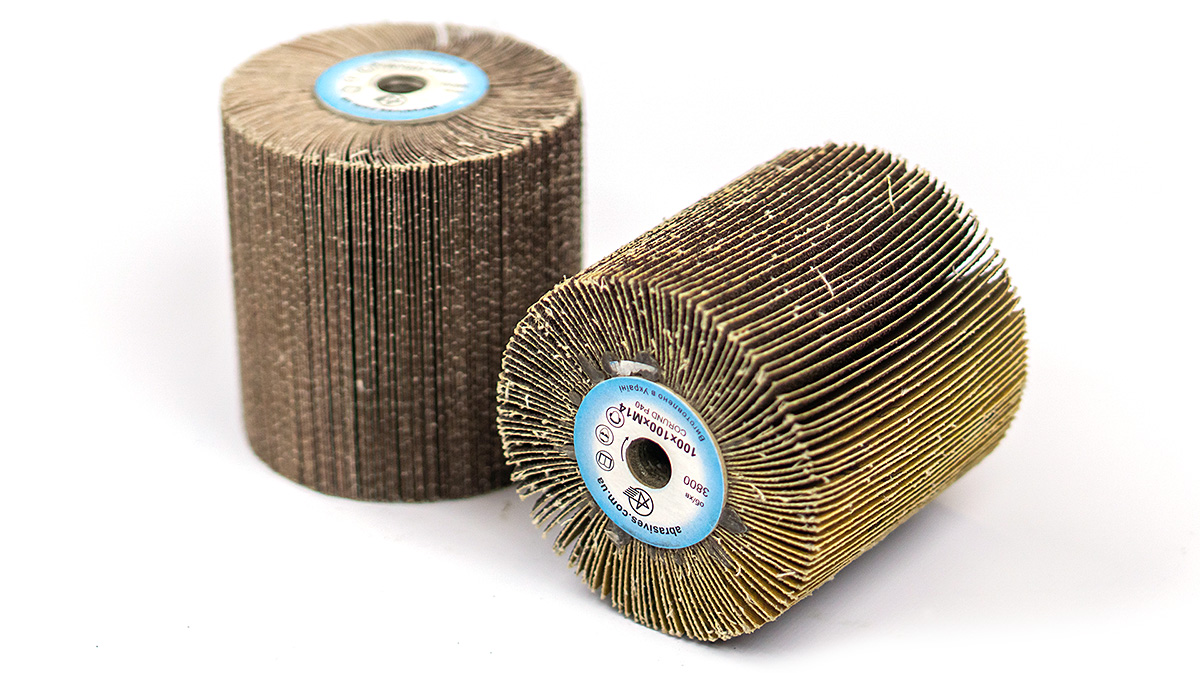

Flap wheel with M14 landing thread TS U 23.9-37460785-001: 2019.

Producer: LLC Abramat. By buyer's order, it is possible to manufacture products of other standard sizes and grit

Application: abrasive flap wheel with M14 landing thread is used for roughing, intermediate and final grinding and polishing of metal, wood and plastics, removing old paint, corrosion, for preparing surfaces for electroplating, welding, soldering, gluing, etc. Preferably, it is used for manual grinding of large-sized flat workpieces. A feature of the flap wheel is the M14 connecting thread, which allows you to quickly set the circle on the spindle of an angle grinder. Angle grinder should be able to adjust speed. The petal wheel guarantees uniform grinding to its full wear.

Equipment: manual electro and pneumatic machines with speed control.

Basis: grinding skins based on cotton fabrics, polyester, polycotone.

Abrasive material: electrocorundum, silicon carbide, zirconium electrocorundum.

Recomendations for use: Rotation direction of the wheel - strictly in the direction indicated on the label. The rotation speed V and the working revolutions N of the flap wheel must not exceed those indicated on the label. The force of pressing the circle to the workpiece should be as small as possible. The deformation (deflection) of the petals during operation should not exceed 2 mm, depending on the outer diameter of the circle and the degree of wear. Avoid overheating of the circle.
